Special Drill Geometries for Diverse Applications
Our Drills perform efficiently in even the harshest cutting environments.With excellent hardness and wear resistance.
Special Drill Geometries by GTW

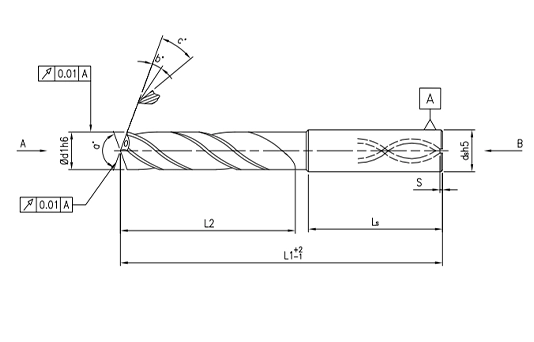

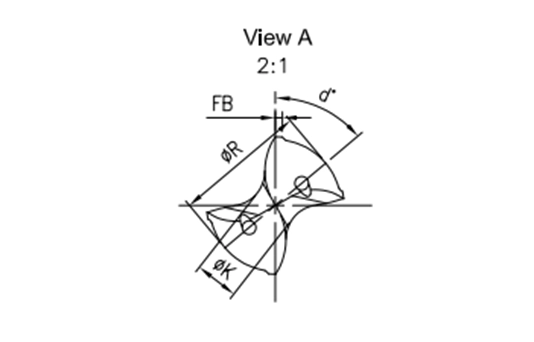

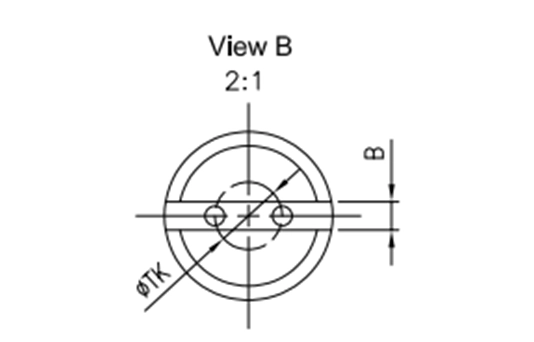

Features of S Geometry
Self-centering geometry |
Active chisel edge optimum chips. |
Reinforced core and wide chip space |
Helps reduce cutting forces |
Convex edge distributes cutting forces more evenly |
Produce a smoother hole finish |
Spiral flute |
With and without internal coolant |
Single and double margin |
L/D Ratio – Up to 12 |
Diameter Range – 1mm to 20mm |
Point Angle – 135° to 142° |
PVD Coated – as per application |
Cylindrical Shank – DIN 6535 HA/HB/HE |
Application Material for S Geometry
1.1.1 | Machining Steel |
---|---|
1.1.2 | |
1.2.1 | Construction Steel |
1.2.2 | |
2.1.1 | Cementation Steel |
2.1.2 | |
2.1.3 | |
2.2.1 | Nitriding Steel |
2.2.2 | |
2.3.1 | Tempered Steel |
2.3.2 | |
2.3.3 | |
2.3.4 | |
2.3.5 | |
3.1.1 | Unalloyed Tool Steel |
3.2.1 | Tool Steel For Cold Working |
3.2.2 | |
3.2.3 | |
3.3.1 | Tool Steel For Hot Working |
3.3.2 | |
3.3.3 | |
3.3.4 | |
3.3.5 | |
5.1.1 | Conventional Cast Steel |
5.1.2 | |
5.1.3 | |
6.1.1 | Lamellar Graphite Cast Iron |
6.1.2 | |
6.1.3 | |
6.1.4 | |
6.2.1 | Spheroidal Cast Iron |
6.2.2 | |
6.2.3 | |
6.3.1 | White Malleable Cast Iron |
6.3.2 | |
6.4.1 | Black Malleable Cast Iron |
6.4.2 | |

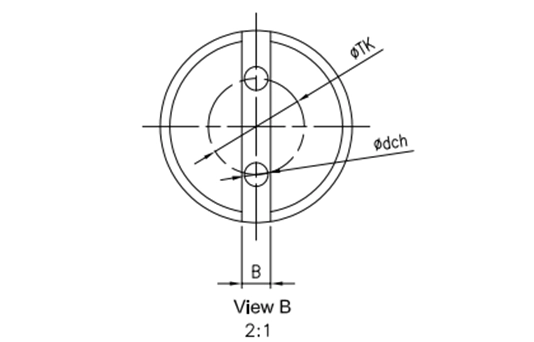

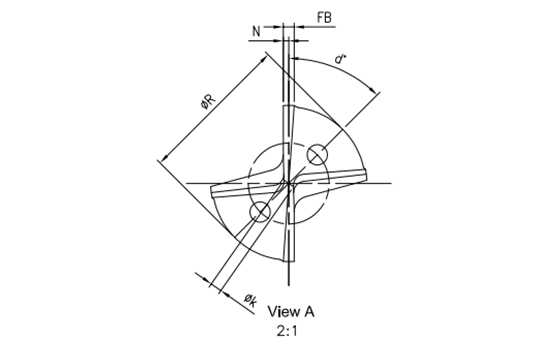

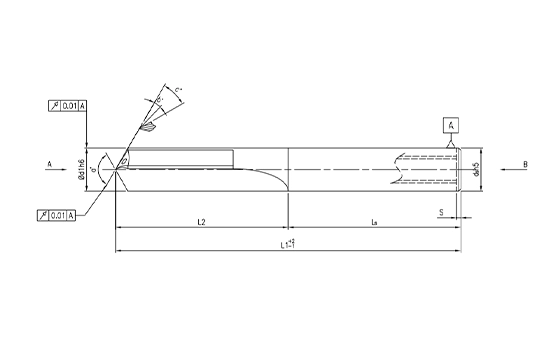

Features of B Geometry
2 straight cutting edges |
Ex-cellent inherent centring |
Drill and ream in single tool |
Burnishing pad |
Right hand cut |
With and without internal coolant holes |
Single and double margin |
L/D Ratio – Up to 12 |
Diameter Range – 3mm to 20mm |
Point Angle –118°-142° |
PVD Coated – As per application |
High flute polish – tool can be used without coating too |
Cylindrical Shank – DIN 6535 HA/HB/HE |
Application Material for B Geometry
6.1.1 | Lamellar Graphite Cast Iron |
---|---|
6.1.2 | |
6.2.1 | Spheroidal Cast Iron |
6.2.2 | |
6.3.1 | Spheroidal Cast Iron |
6.3.2 | |
6.4.1 | Black Malleable Cast Iron |
6.4.2 | |
7.1.4 | Aluminium |
7.1.5 | |
7.1.6 | |




Features of WF Geometry
Self-centering geometry. |
Reduced cutting forces. |
Spiral flute. |
With and without internal coolant. |
Single and double margin. |
L/D Ratio – Up to 6 |
Diameter Range – 3mm to 25mm |
Point Angle – 135° to 142° |
PVD Coated – as per application |
Cylindrical Shank – DIN 6535 HA/HB/HE |
Application Material for WF Geometry
1.1.1 | Maching Steels |
---|---|
1.1.2 | |
1.2.1 | Constructional Steel |
1.2.2 | |
1.2.3 | |
2.1.1 | Cementation Steel |
2.1.2 | |
2.1.3 | |
2.2.1 | Nitriding Steel |
2.2.2 | |
2.3.1 | Tempered Steel |
2.3.2 | |
2.3.3 | |
2.3.4 | |
4.1.1 | Stainless Steel |
4.1.2 | |
4.1.3 | |
4.1.4 | |
4.1.5 | |
5.1.1 | Conventional Cast Steel |
5.1.2 | |
5.1.3 | |
5.2.1 | Stainless Cast Steel |
5.2.2 | |
6.1.1 | Lamellar Graphite Cast Iron |
6.1.2 | |
6.1.3 | |
6.1.4 | |
6.2.1 | Spherodial Cast Iron |
6.2.2 | |
6.2.3 | |
6.3.1 | White Malleable Cast Iron |
6.3.2 | |
6.4.1 | Black Malleable Cast Iron |
6.4.2 | |
7.8.1 | Titanium |
7.8.2 | |
7.8.3 |



Features of F Geometry
Self-centering geometry |
Reduced cutting forces |
Straight main cutting edge |
Spiral flute |
With and without internal coolant |
Single and double margin |
L/D Ratio - Up to 8 |
Diameter Range - 3mm to 25mm |
Point Angle - 135° to 142° |
PVD Coated - as per application |
Cylindrical Shank - DIN 6535 HA/HB/HE |
Application Material for F Geometry
4.1.1 | Stainless Steel |
---|---|
4.1.2 | |
4.1.3 | |
4.1.4 | |
4.1.5 | |
5.2.1 | Stainless Cast Steel |
5.2.2 | |
6.1.4 | Lamellar Graphite Cast Iron |

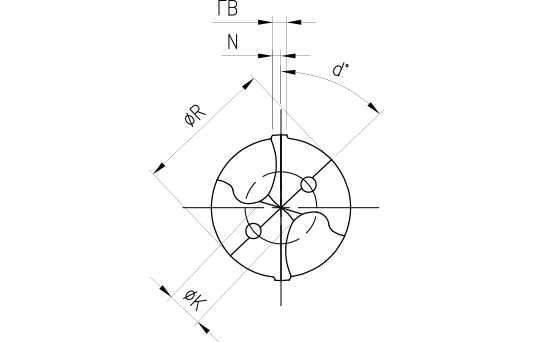

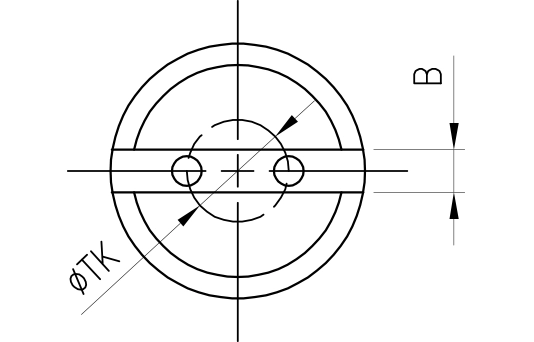

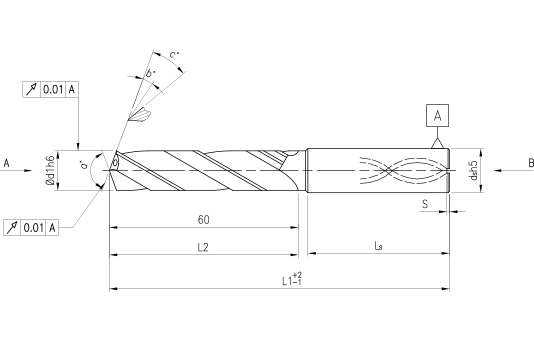

Features of M Geometry
High cutting parameters |
Reduced cutting forces |
Prevent excessive rubbing and friction |
Spiral flute |
With and without internal coolant |
Single and double margin |
L/D Ratio - Up to 8 |
Diameter Range - 3mm to 25mm |
Point Angle - 135° to 142° |
PVD Coated - as per application |
Cylindrical Shank - DIN 6535 HA/HB/HE |
Application Material for M Geometry
1.1.1 | Maching Steels |
---|---|
1.1.2 | |
1.2.1 | Constructional Steel |
1.2.2 | |
1.2.3 | |
2.1.1 | Cementation Steel |
2.1.2 | |
2.1.3 | |
2.2.1 | Nitriding Steel |
2.2.2 | |
2.3.1 | Tempered Steel |
2.3.2 | |
2.3.3 | |
2.3.4 | |
2.3.5 | |
2.3.6 | |
3.2.1 | Unalloyed Tool Steel |
3.2.1 | Tools Steel for cold working |
3.2.2 | |
3.2.3 | |
3.2.4 | |
3.2.5 | |
3.3.1 | Tools Steel for Hot workin |
3.3.2 | |
3.3.3 | |
3.3.4 | |
3.3.5 | |
4.1.1 | Stainless Steel |
4.1.2 | |
4.1.3 | |
4.1.4 | |
4.1.5 | |
4.2.1 | Heat Resistant Alloys |
4.2.2 | |
4.2.3 | |
4.2.4 | |
5.1.1 | Conventional Cast Steel |
5.1.2 | |
5.1.3 | |
5.2.1 | Stainless Cast Steel |
5.2.2 | |
7.7.1 | Nickel |
7.7.2 | |
7.8.1 | Titanium |
7.8.2 | |
7.8.3 |

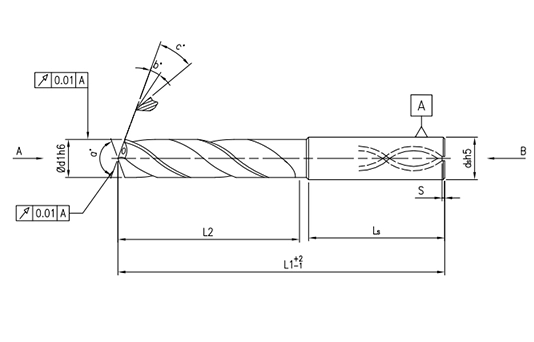

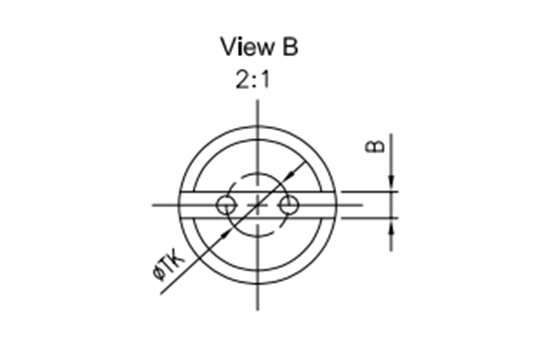

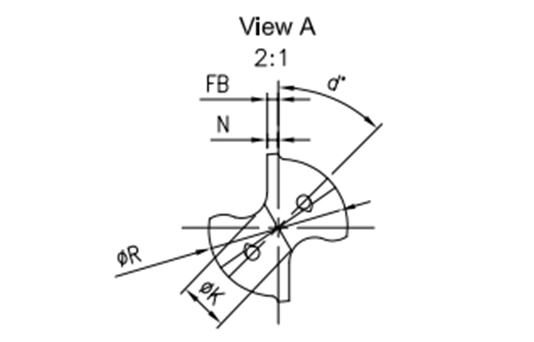

Features of J Geometry
Spiral flute |
Excellent inherent centring |
Reduced cutting forces |
High wear resistance |
Performance at high temperatures |
Efficient chip removal |
Right hand cut |
With and without internal coolant holes |
Single and double margin |
L/D Ratio – Up to 5 |
Diameter Range – 3mm to 20mm |
Point Angle – 135°-142° |
PVD Coated – As per application |
Cylindrical Shank – DIN 6535 HA/HB/HE |
Application Material for J Geometry
1.1.1 | Machining Steel |
---|---|
1.1.2 | |
1.2.1 | Construction Steel |
1.2.2 | |
1.2.3 | |
1.3.1 | Spring Steel |
1.3.2 | |
1.3.3 | |
2.1.1 | Hardened Steel |
2.1.2 | |
2.1.3 | |
2.2.1 | Nitriding Steel |
2.2.2 | |
2.3.1 | Tempered Steel |
2.3.2 | |
2.3.3 | |
2.3.4 | |
2.3.5 | |
2.3.6 | |
3.1.1 | Unalloyed Tool Steel |
3.2.1 | Tool Steel For Cold Working |
3.2.2 | |
3.2.3 | |
3.2.4 | |
3.2.5 | |
3.3.1 | Tool Steel For Hot Working |
3.3.2 | |
3.3.3 | |
3.3.4 | |
3.3.5 | |
4.1.1 | Stainless Steel |
4.1.2 | |
4.1.3 | |
4.1.4 | |
4.1.5 | |
5.1.1 | Conventional Cast Steel |
5.1.2 | |
5.1.3 | |
5.2.1 | Stainless Cast Steel |
5.2.2 | |
6.1.1 | Lamellar Graphite Cast Iron |
6.1.2 | |
6.1.3 | |
6.1.4 | |
6.2.1 | Spheroidal Cast Iron |
6.2.2 | |
6.2.3 | |
6.3.1 | White Malleable Cast Iron |
6.3.2 | |
6.4.1 | Black Malleable Cast Iron |
6.4.2 |

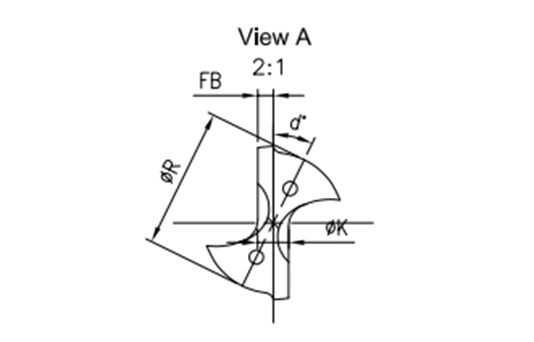

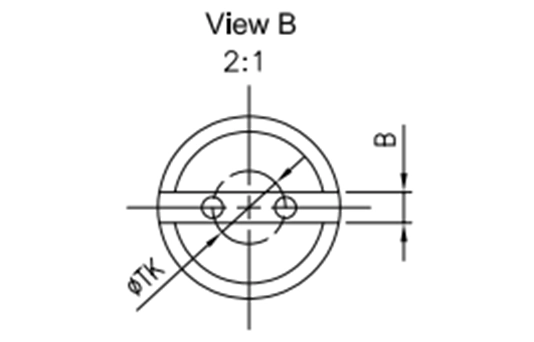

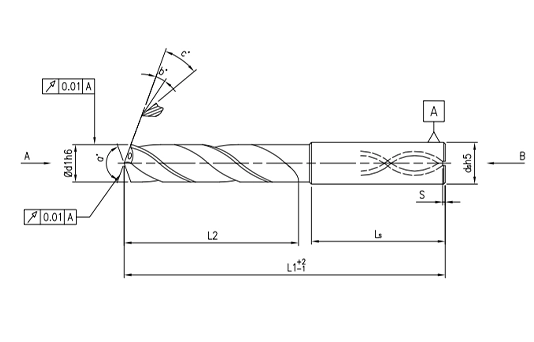

Features of N Geometry
Spiral flute |
Inherent centring |
Right hand cut |
With and without internal coolant holes |
Single and double margin |
Improved hole quality and dimensional accuracy |
L/D Ratio – Up to 12 |
Diameter Range – 1mm to 16mm |
Point Angle – 118°-142° |
PVD Coated/un-coated – As per application |
Cylindrical Shank – DIN 6535 HA/HB/HE |
Application Material for N Geometry
7.1.1 | Aluminium |
---|---|
7.1.2 | |
7.1.3 | |
7.1.4 | |
7.1.5 | |
7.1.6 | |
7.2.1 | Magnesium |
7.2.2 | |
7.3.1 | Copper |
7.3.2 | |
7.3.3 | |
7.3.4 | |
7.3.5 | |
7.3.6 | |
7.4.1 | CnZn (Brass) |
7.4.2 | |
7.5.1 | CuSn (Bronze) |
7.5.2 | |
7.7.1 | Nickel |
7.7.2 | |
7.8.1 | Titanium |
7.8.2 | |
7.8.3 | |
8.1.1 | Thermoplast |
8.2.1 | Duroplast |

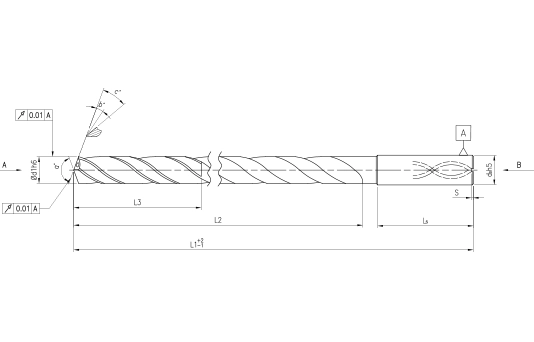

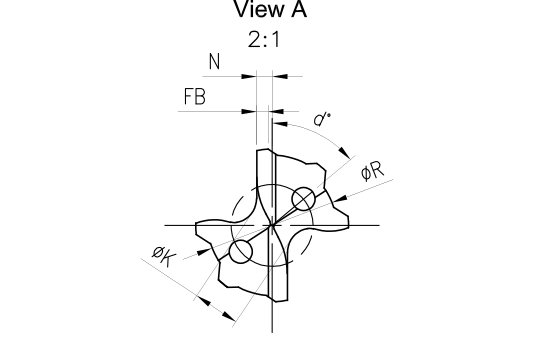

Features of X Geometry
30° Spiral flute |
Excellent inherent centring |
Reduced cutting forces |
Right hand cut |
Excellent for Deep-hole drilling operations |
Excellent wear resistance |
With and without internal coolant holes |
Double margin |
L/D Ratio – Up to 30 |
Diameter Range – 3mm to 12mm |
Point Angle – 135° |
PVD Coated – As per application |
Cylindrical Shank – DIN 6535 HA/HB/HE |
Application Material for X Geometry
1.1.1 | Machining Steel |
---|---|
1.1.2 | |
1.2.1 | Construction Steel |
1.2.2 | |
1.2.3 | |
2.1.1 | Cementation Steel |
2.1.2 | |
2.1.3 | |
2.2.1 | Nitriding Steel |
2.2.2 | |
2.3.1 | Tempered Steel |
2.3.2 | |
2.3.3 | |
2.3.4 | |
2.3.5 | |
3.1.1 | Unalloyed Tool Steel |
3.2.1 | Tool Steel For Cold Working |
3.2.2 | |
3.3.1 | Tool Steel For Hot Working |
4.1.1 | Stainless Steel |
4.1.2 | |
4.1.3 | |
4.1.4 | |
4.1.5 | |
5.1.1 | Conventional Cast Steel |
5.1.2 | |
5.1.3 | |
5.2.1 | Stainless Cast Steel |
5.2.2 | |
6.1.1 | Lamellar Graphite Cast Iron |
6.1.2 | |
6.1.3 | |
6.1.4 | |
6.2.1 | Spheroidal Cast Iron |
6.2.2 | |
6.2.3 | |
6.3.1 | White Malleable Cast Iron |
6.3.2 | |
6.4.1 | Black Malleable Cast Iron |
6.4.2 |

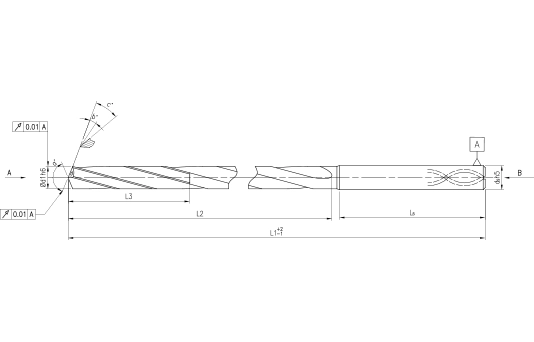

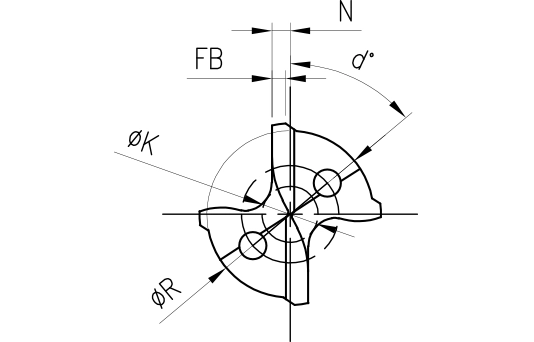

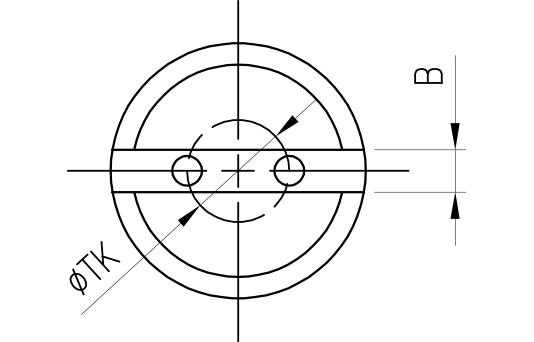

Features of L Geometry
15° Spiral flute |
Reduced cutting forces |
Right hand cut |
Optimize chip removal |
Improves cycle times and efficiency |
High-quality, accurate holes even at greater depths |
Excellent wear resistance |
With and without internal coolant holes |
Double margin |
L/D Ratio – Up to 30 |
Diameter Range – 2mm to 12mm |
Point Angle – 135° |
PVD Coated – As per application |
Cylindrical Shank – DIN 6535 HA/HB/HE |
Application Material for L Geometry
7.1.1 | Aluminium |
---|---|
7.1.2 | |
7.1.3 | |
7.1.4 | |
7.1.5 | |
7.1.6 | |
7.3.1 | Copper |
7.3.2 | |
7.3.3 | |
7.3.4 | |
7.3.5 | |
7.3.6 | |
7.4.1 | CnZn (Brass) |
7.4.2 | |
7.5.1 | CuSn (Bronze) |
7.5.2 |

Key Advantages of GTW's Special Drill Geometries
01
Customizable Designs:
Each drill geometry is tweaked to match the specific application requirements and machining conditions, ensuring maximum efficiency and tool performance.
02
Optimized Cutting Speeds and Feed Rates:
Focuses on achieving higher feed rates and optimized cutting speeds to enhance productivity while maintaining tool life and workpiece quality.
03
Industry-Specific Solutions:
From the precision required in aerospace and electronics to the robustness needed in mining and automotive, GTW's drill geometries offer versatile solutions across a wide range of industries.
